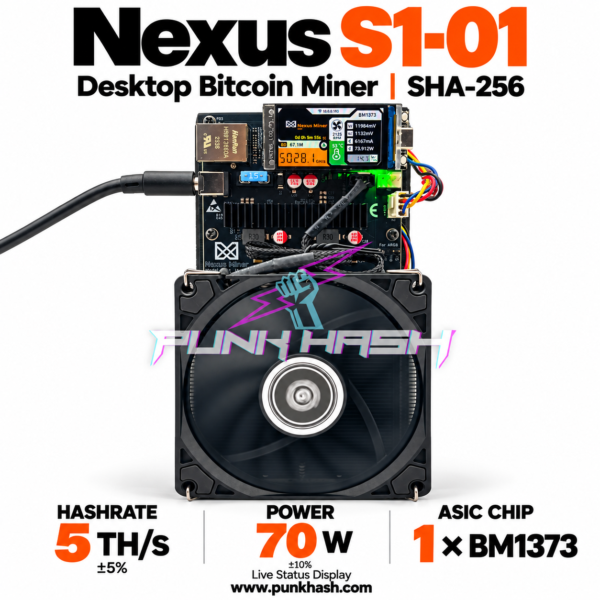

Nexus S1-01 -5 TH/s Desktop Bitcoin Miner – BM1373 ASIC

Nexus S1-01 is a desktop Bitcoin miner featuring one BM1373 ASIC chip, a rated hashrate of 5 TH/s ±5% and specified power consumption of 70W ±10%. It uses the SHA-256 algorithm for Bitcoin mining and includes fan cooling and a built-in status display.

Designed for mining enthusiasts and hardware hobbyists, this model combines dedicated ASIC computing power with a visible, upright desktop design.

Nexus S1-01: Key FeaturesNexus S1-01 -5 TH/s Desktop Bitcoin Miner – BM1373 ASIC

5 TH/s of Bitcoin Mining Power

The rated hashrate is 5 TH/s with a ±5% tolerance, equivalent to approximately 4.75–5.25 TH/s. This provides dedicated SHA-256 computing power for users exploring desktop Bitcoin mining.

Actual performance can vary with configuration and operating conditions.

Powered by One BM1373 ASIC Chip

A single BM1373 chip performs the mining workload. Clearly specified chip hardware makes it easier to understand the configuration and compare it with other desktop models.

This is dedicated mining equipment rather than a general-purpose computer or graphics card.

70W Specified Power Consumption

The supplied power specification is 70W ±10%, corresponding to approximately 63–77W. Dividing the nominal 70W by the nominal 5 TH/s gives a calculated efficiency of approximately 14 J/TH.

The measurement point has not been separately identified as device power or wall power. Use measured outlet consumption when estimating electricity costs for the complete setup.

Built-In Live Status Display

The integrated screen shows operating information including hashrate, temperature and power readings. It allows you to check key data directly on the device without a separate monitor for basic status checks.

Screen readings represent the machine’s reported operating data and should not automatically be treated as wall-power measurements.

Fan Cooling and Exposed Hardware

A front-mounted fan and heatsink assembly dissipate heat during operation. The exposed circuit board and visible components give the machine a distinctive hardware-focused appearance.

Keep the cooling path clear and position the unit where airflow is not obstructed.

Technical Specifications

Specifications refer to the stated configuration. Actual hashrate, power consumption and temperature may vary with settings and operating conditions. Calculated efficiency is based on nominal specifications, not a separate wall-power test.

Who Is This Miner For?

This model is intended for Bitcoin enthusiasts who want to explore ASIC mining with a desktop device. Its visible hardware and integrated screen also make it suitable for demonstrations and learning how mining equipment operates.

When choosing a unit, consider the supported firmware, mining configuration, power-supply requirements and operating environment alongside hashrate and power consumption.

Preparing Your Desktop Setup

Place the machine on a stable, ventilated surface. Keep exposed components away from liquids and accidental contact, and leave enough space around the fan and heatsink for airflow.

Before ordering, confirm the required power supply, included accessories, network connection method and supported pool settings with PunkHash. Package contents and configuration should be checked for the unit being supplied.

To estimate electricity use, measure the complete setup at the outlet:

Daily electricity consumption in kWh = wall power in watts ÷ 1,000 × operating hours.

Frequently Asked Questions

What is the Nexus S1-01?

It is a desktop Bitcoin ASIC miner with one BM1373 chip, a rated hashrate of 5 TH/s ±5% and specified power consumption of 70W ±10%.

Which algorithm does it use?

It uses SHA-256 for Bitcoin mining. It is not a Scrypt miner for Litecoin.

How many ASIC chips does it contain?

The specified configuration contains one BM1373 ASIC chip.

What does 5 TH/s ±5% mean?

It indicates a nominal hashrate of five trillion hashes per second, with a stated tolerance corresponding to approximately 4.75–5.25 TH/s.

Is 70W the power drawn from the wall?

The supplied specification states 70W ±10% without identifying the measurement point. Confirm the measurement basis or use an outlet power meter when calculating electricity consumption.

What information does the screen show?

The built-in screen displays operating information including hashrate, temperature and device-reported power readings.

Does it use liquid cooling?

No. The pictured configuration uses a cooling fan and heatsink.

Is it silent?

The machine uses a cooling fan and should not be described as silent. Ask PunkHash for operating videos and available noise measurements if sound levels are important to your installation.

Does it support solo mining?

Confirm the supplied firmware, solo-mining support and compatible pool settings before ordering. Available functions depend on the configuration of the supplied unit.

Is a power supply included?

Contact PunkHash to confirm package contents, power-supply specifications and accessories for your order.

Pricing and Ordering

Contact PunkHash for current Nexus S1-01 pricing, availability and shipping options. Include your required quantity and delivery country so the team can confirm the appropriate configuration and quotation.
